Rescue & Extrication: Stak Jak II



Powermats Stak Jak IIRecovery

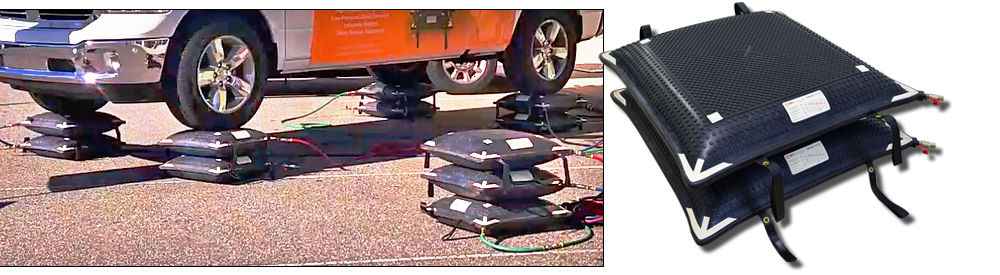

Stak Jak: Sometimes you just need a more stable way to lift..

Stak Jaks have a flat inflated profile for more stability. Stak Jaks are inflated with compressed air to quickly lift heavy objects. Breathing air systems can be used to inflate them making them ideal for use in rapid response emergency situations. They also have a controlled deflation, air-flow restriction valve, if required. Use Stak Jaks to stabilize and lift. Inflated Stak Jaks will not roll, eject or shift under a load.

High-pressure, lifting cushions for entrapment rescue and heavy lifting:


The choice of which bag to use depends on the level of safety you need.

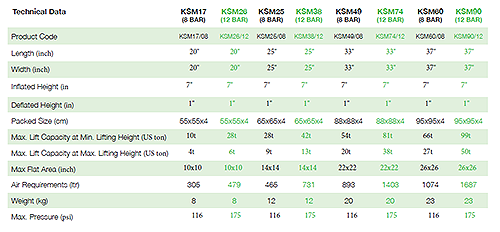

...Specifications...

  • INFLATION HOSE:

    - 3/8”ID All-weather inflation hoses.
    - *Black hose is approved for use in mines (MSHA approved).
    - Choice of Black, Blue, Green, Yellow, or Red.
    - Select colors according to standard controller color coding.
    - Rubber hoses remain flexible from -40°F to +212°F (-40°C to 100°C).
    - Nytrile rubber coating is naturally resistant to oil & fuel.
    - All hoses come with proprietary safety couplers which are compatible with all EU air bags,   controllers and associated accessories.
    - Use adapters to convert air compressor, truck air, or other air source to EU safety couplers.
    - Burst pressure, 1,000 PSI.

  • Hose Color Code Designation:
    - Yellow = Supply hose
    - Blue = Primary inflation distribution hose (for single controllers)
    - Red = Secondary inflation distribution hose (for dual controllers)
    - Green = Third inflation distribution hose (for triple controllers)
    - Black = additional extension hose (MSHA approved for mine use).

    Console Controllers:
    - Double 548275J
    - Triple 548276J
    -     Quad 548277J

    Console Controller: preferred for precise inflation and deflation control. All metal, variable control, console controllers are the most popular choice for first responders and rescue teams, recovery and vehicle (or structure) stabilization operations. The Deadman controller can accurately control one, two or three bags from a single regulated air source. Built-in safety relief valves prevent lifting bag over pressurization. Toggles are pressure sensitive; open a little for slight flow, open more for more flow. Couplers are color coded for use with colored hoses for easier identification during lifting.


    76681J, Single-output pipe-fitting controller. Solid brass construction, glycerin-filled, stainless-steel gauge, polycarbonate bezel, over-pressure relief valve with relief valve. Industrial, nickel-plated air input, universal output coupler. This controller works well for industrial applications where environmental conditions such as extreme temperature gradients, corrosive liquids, acids and rough handling requires more robust equipment.

    76682J, Double-output pipe-fitting controller. Control two bags independently from one air source. Solid brass construction, glycerin-filled, stainless-steel gauge, polycarbonate bezel, over-pressure relief valve, industrial, nickel-plated air input, universal output coupler. This controller works well for industrial applications where environmental conditions such as extreme temperature gradients, corrosive liquids, acids and rough handling requires more robust equipment.







  • 72128-1J: Regulator, rubber diaphragm sensed, brass, hand tight nut and nipple, flow control valve to limit flow rate for smaller bags, stainless steel glyceryn filled heavy duty gauges







    72128-CGA 8-bar: Regulator, piston sensed, adjustable 0-175P5I. 6061 Aluminum body, anodized hand tight nut and nuipple, stainless steel glyceryn filled heavy duty gauges.



  • DVLB1-SCJ: Inline shut-off valve




  • 60844EULRVJ: Inline shut-off with relief valve




  •

    PCA-1J: Industrial Interchange portable compressor adapter



  • TCA-1J: Chicago Claw construction compressor adapter



  • GCA-1J: Glad-Hand Truck Air brake adapter



  • 100839J: Composite, high-density, waterproof case, 22x17x8 (Pelican 1600 type), black with internal pluck and pick foam. Large enough to hold a dual console controller, regulator, three 20' hoses, inline shut-off valves, adapters and other accessories.
